“My project requires development of this part. Please share the cost of injection molding and 3D printing for 100 pieces.”
We receive such queries often, showing that people still aren’t sure which method fits their needs. While both turn digital designs into real parts, they have distinct differences. The difference between injection molding and 3D printing comes down to cost, speed, scalability, and precision. However, the final choice usually depends on the production needs. Let’s break down which process works best for prototyping, small batch, or full production.

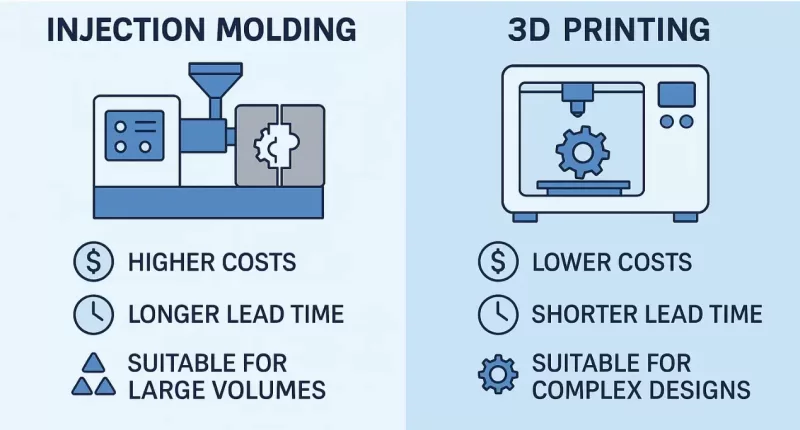

The Basics of 3D Printing vs Injection Molding

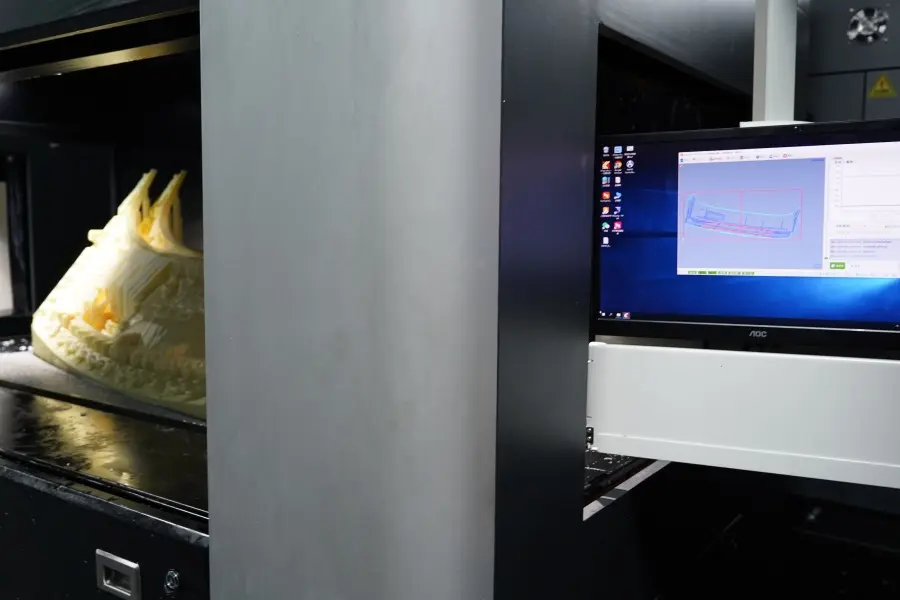

3D printing (additive manufacturing) creates parts layer by layer using a digital file. It does not require any tooling, making it excellent for prototyping, complex geometries, and low-volume runs. It is further categorized into popular technologies, including FDM, SLA, and SLS. Each of these are appropriate for different materials and precision levels.
Injection molding, on the other hand, is a large-scale production method. In order to quickly make identical pieces, molten material is injected into a metal mold.
In the case of injection molding vs 3d printing cost is higher up for the former. While the initial cost of tooling is high, the per-unit cost decreases as scale increases. Hence, making it cost-effective for mass manufacturing.
Let’s break down both processes and evaluate which one is perfect for prototyping, small batches, and large scale production.
Injection Molding vs 3D Printing for Prototyping
Prototyping is an essential step in product development. It helps evaluate design feasibility, material properties, and functionality before moving to full-scale production. Both the injection molding and 3D printing are used in prototyping but you need to know which one suits your needs.
3D printing is the preferred method for early-stage prototype. It allows for quick iterations without the need for expensive molds. It is extremely cost-effective and allows for intricate features that standard production methods cannot deliver. This versatility makes it excellent for refining a design or testing modifications on a tight budget.
In contrast, injection molding is better suited to late-stage prototypes. It is particularly helpful when the design is complete. It does require an initial investment in mold design. But it produces high-precision parts that mirror the final product in both form and material properties.
Engineers Tip
Use 3D printing when you need fast, flexible, and economical prototypes. And turn to injection molding when you’re ready to validate the design with production-quality samples.
Injection Molding vs 3D Printing for Small-Batch Production
Small-batch production sits between prototyping and mass manufacturing. The order volume is typically too low to justify the cost of mass production but still needs a certain level of efficiency. Hence, choosing the right process for small batch is very tricky and more nuanced.
3D printing is especially useful for short runs because of its low initial investment. In 3D printing the setup needs are simple. And it tolerates design modifications without incurring additional costs. It also provides considerable flexibility for creating custom parts adapted to niche markets.
In contrast, injection molding may appear expensive at first due to the requirement to create molds. But it becomes more cost-effective as batch size increases. Once molds are created, they provide improved part uniformity, surface smoothness, and strength. Hence, making them perfect for small batches with high precision and uniform quality.
Engineers Tip
When you require a small number of intricate or customizable parts but don’t want to spend money on molds, choose 3D printing. There are two conditions to choosing injection molding:
- When the batch size is large enough to offset tooling expenses
- If you’ve already purchased molds for future large-scale manufacturing

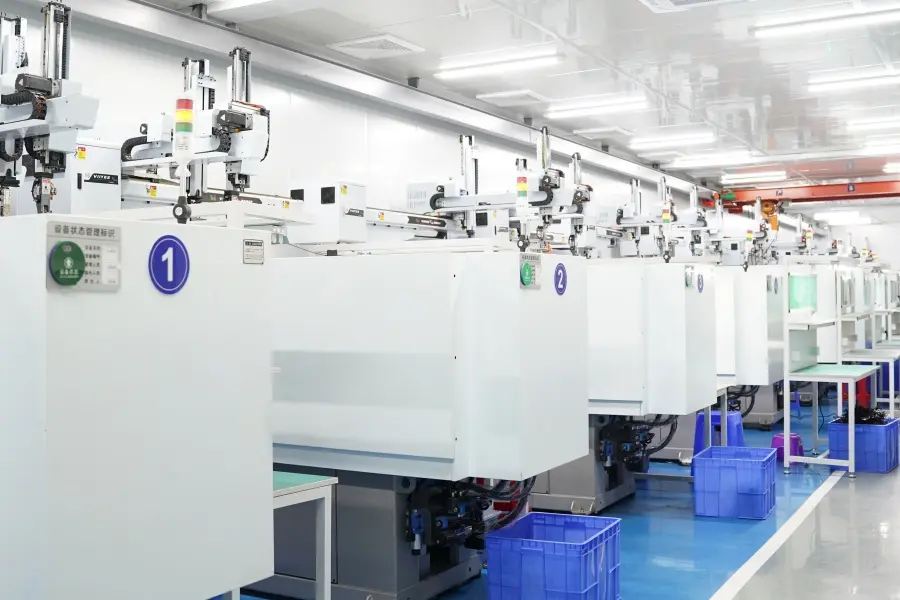

Injection Molding vs 3D Printing for Large-Scale Production
When it comes to large-scale production, the decision between injection molding and 3D printing becomes clearer. Injection molding is the favored method for mass production. Since it has a substantially cheaper per-unit cost once the mold is formed.
It is capable of rapidly creating thousands of parts. When connected with automated systems the efficiency is unremarkable. It also supports a wide range of materials. Thus, ensuring the strength, durability, and flexibility required for high-performance applications.
In contrast, 3D printing has constraints at scale production. Its material qualities rarely equal the strength of injection-molded parts. And the cost per unit remains expensive regardless of quantity.
Engineers Tip
Injection molding is perfect for high-volume production. Because it maintains precision and homogeneity among parts. 3D printing may continue to play a role in large-scale production. But only for highly specialized objects that cannot be produced using traditional molding techniques.
To make your decision easier, here’s a quick comparison table summarizing the key differences between injection molding and 3D printing across all production stages.
| Production Stage | 3D Printing | Injection Molding |
| Prototyping | – Fast, low-cost iterations
– No molds/tooling needed – High design flexibility |
– High-precision prototypes
– Requires mold creation – Best for finalized designs |
| Small-Batch Production | – Low initial investment
– Easy customization – Quick changes possible |
– Higher setup cost
– More consistent quality – Economical if molds are pre-made |
| Large-Scale Production | – Cost per unit remains high
– Not ideal for durable parts |
– Lowest cost per part
– Fast, automated production – Broad material options |
Pro Tips from Our Engineering Team
If you are still confused between the two processes, here are some pro tips to follow.
1. Understand Mold Options for Injection Molding

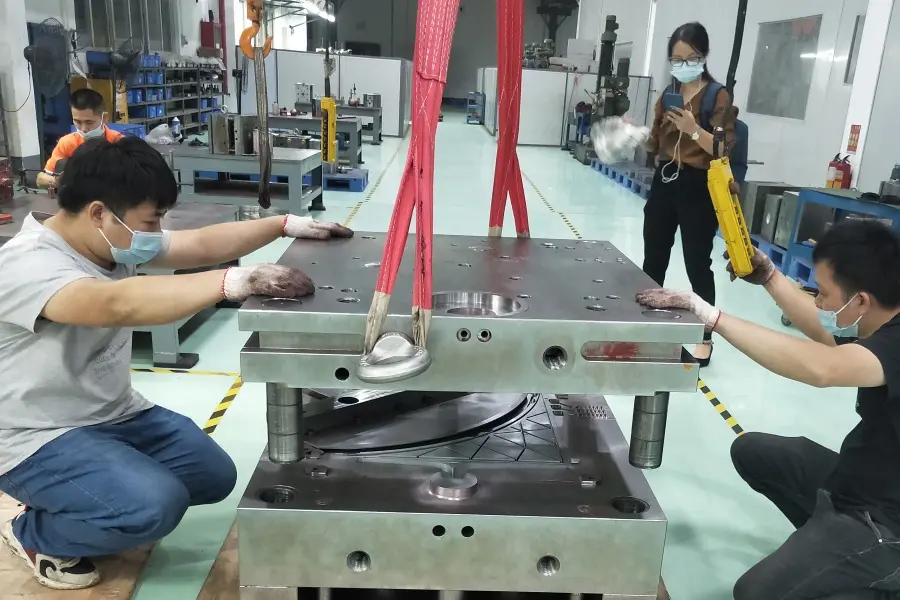

Injection molding is not a one-size-fits-all solution. There are different mold materials such as aluminum molds, soft steel molds, multi-cavity molds, and family molds. Each provides varying costs and efficiencies depending on the stage of manufacturing. Choosing the proper mold type can have a considerable impact on budget and scalability.
2. Know your 3D printing processes
3D printing processing type and suitability vary depending on the technology. FDM is ideally suited for structural prototypes, SLA for cosmetic or visual models, and SLS for strength and durability. Matching the proper approach to your needs leads to best results.
3. Plan for Mold Upgrades
Starting with a single-cavity mold for testing is a wise decision. These molds can be updated later to multi-cavity models. Hence, allowing you to save money upfront while remaining flexible for future production needs.
4. Do not Confuse Prototypes with Production Parts
A common misconception is that 3D printed objects can be subjected to stress, strength, and aging testing. In actuality, 3D printing materials, such as PLA, resin, or nylon, lack the mechanical and thermal qualities of industrial plastics. While 3D printing is useful for preliminary structural testing and design validation, it should not be utilized to evaluate long-term performance or material behavior in final assemblies.
5. Consider material consistency for certifications
If your product needs industry certifications, you must use injection-molded samples. These should be made with production-grade materials to ensure compliance and accurate testing. Mostly medical, automotive, and electronics, require such certifications
6. Look beyond the initial costs
Don’t just go for the cheapest choice. A more effective technique is to calculate the total cost of ownership (TCO). Which includes per-unit pricing, lead times, product quality, and long-term scalability. Smart decisions today can result in considerable savings later.
Frequently Asked Questions
Q1. Is injection molding better than 3D printing?
It depends on your production requirements. Injection molding is ideal for high-volume manufacturing. It is perfect for mass production of completed designs. 3D printing, is better suited for quick prototyping, custom items, and small-batch runs. Each method offers advantages based on volume, speed, and design complexity.
Q2. Is 3D printing cheaper than molding?
3D printing is often less expensive for prototyping and small-batch production. Because it does not require expensive molds or tooling. You can perform quick iterations with no additional setup expenditures. However, for large-scale production, injection molding becomes more cost-effective over time. Due to its cheap per-unit cost when the mold is created. So, while 3D printing is less expensive initially, molding is more cost-effective for large volumes.
Q3. Can you use a 3D printer for injection molding?
Not directly, but 3D printing can help injection molding. You can 3D print prototype molds for small-scale, low-pressure injection molding. You have to ensure usage of materials that can withstand high temperatures for this. This is helpful for trying out mold designs before investing in metal tooling. However, for full-scale, high-pressure injection molding, traditional metal molds made with CNC machining or EDM are still required for durability and performance.
Q4. What are the disadvantages of injection molding?
Injection molding has substantial upfront costs due to mold production, making it unsuitable for low-volume runs. Once the mold has been created, design revisions are both costly and time-consuming. Lead times may be longer during the initial setup phase. Furthermore, complicated or highly specialized geometries may be challenging to create without advanced equipment, restricting design freedom as compared to 3D printing.
Conclusion
The appropriate production method is determined by the stage of your project and its aims. For prototype, 3D printing stands out due to its speed, versatility, and cost-effectiveness. It is ideal for testing and improving early designs. In small-batch production, 3D printing is ideal for quick, customizable outputs.
But injection molding becomes possible when molds are already available and part uniformity is critical. For large-scale production, injection molding is the favored method due to its low per-unit costs and good output quality.
Finally, assessing your design maturity, budget, and manufacturing volume will allow you to choose the most efficient and scalable option.
